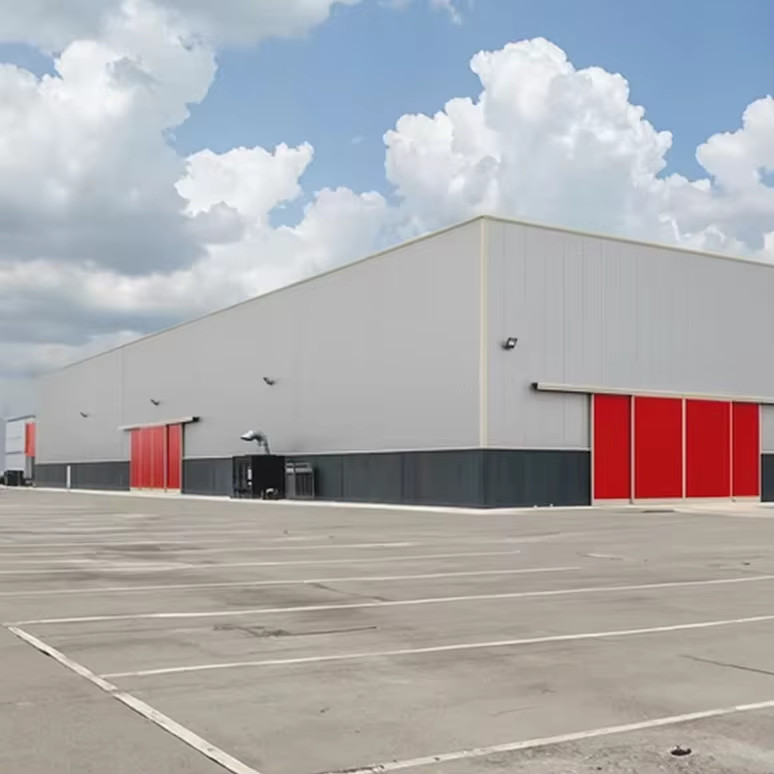

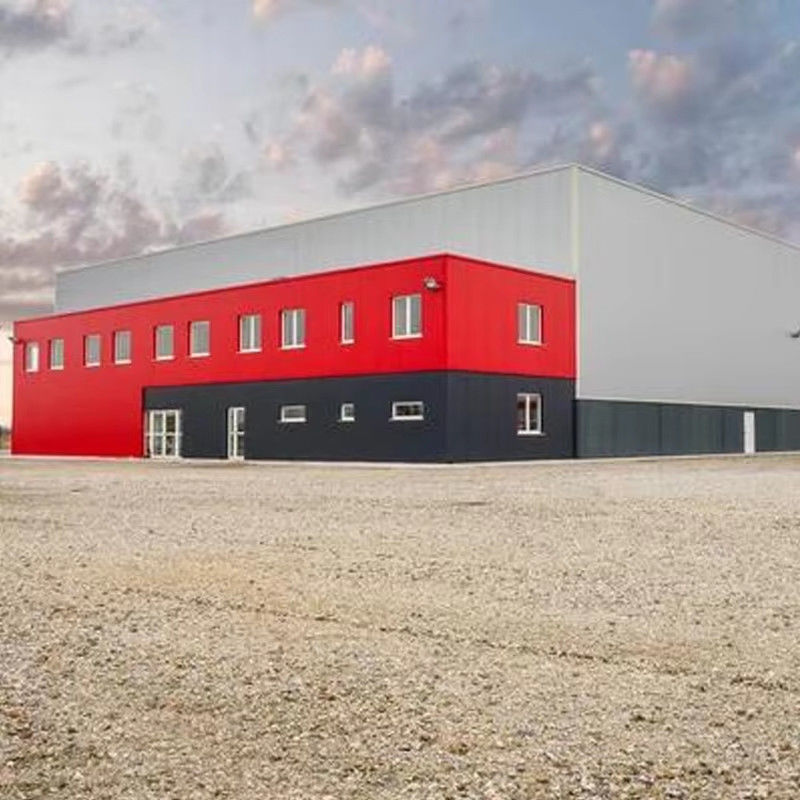

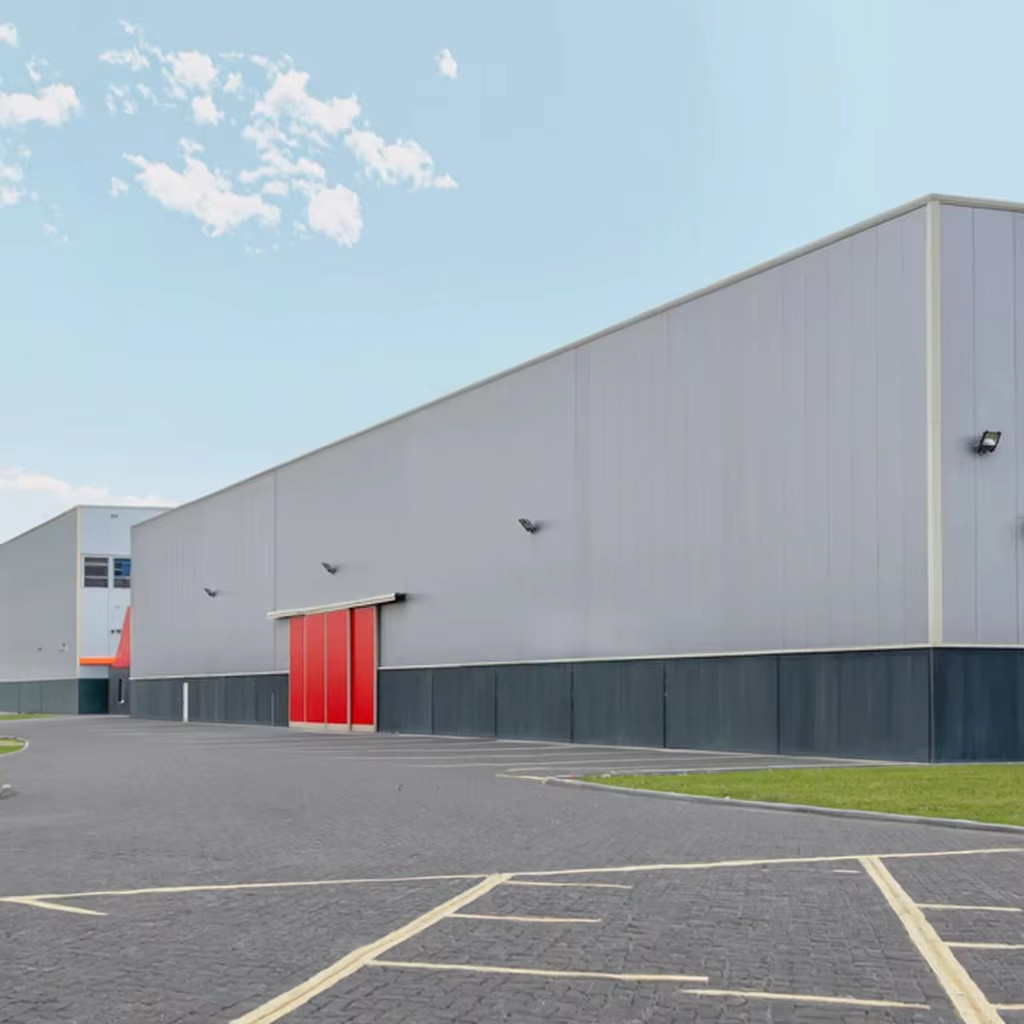

Modern Steel Structure Warehouse Lightweight Steel Frame Structure Building

Basic Information

Place of Origin:	China
Brand Name:	LANJING
Certification:	ICR Polska/VC/HS221231
Model Number:	LANJING-01

Minimum Order Quantity:	1000sqm
Price:	35-55$/sqm
Delivery Time:	30-45 days
Payment Terms:	TT
Supply Ability:	30000T/year

Get Best Price Contact Now

Country Of Origin:	China	Shot Blasting Level:	SA 2.5
Design Style:	Modern	Fire Resistance:	Customizable
Base:	Cement And Steel Foundation Bolts	Color:	Customer's Requirement
Connection Type:	Bolt Connection	Drawing:	Design The Drawing As Your Demand
Roof Cladding:	Corrugated Steel Sheet/Sandwich Panel	Certifications:	ISO 9001, CE
Sail Finishing:	PVDF/PTFE, Pvc Coated	Crane Capacity:	5Tons*2 Pcs
Structure Type:	Light Steel Structre	Frame:	Weld Steel Structure Frame
Material:	Steel	Price Term:	FOB CIF CFR EXW
Cladding:	Steel Color Sheet	Design Software:	Auto CAD,Teckla
Bracing:	Round Bar/Angle Steel/Steel Rod	Lifespan:	More Than 50 Years
Downpipe:	UPVC	Life Time:	50 Years
Highlight:	Modern Steel Structure Warehouse , Modern Structural Steel Warehouse , Lightweight Steel Frame Structure Building

Modern Steel Warehouses For Various Applications Warehouse Hall Villa Mall Gym Supermarket

Product Details

Specification

Modern Steel Warehouses For Various Applications Warehouse Hall Villa Mall Gym Supermarket

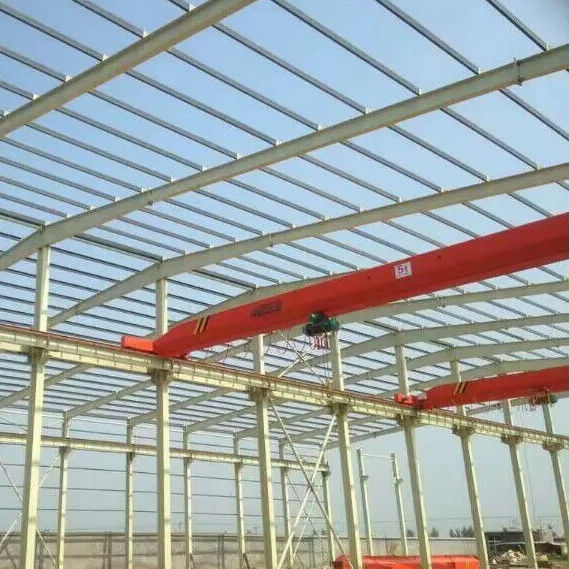

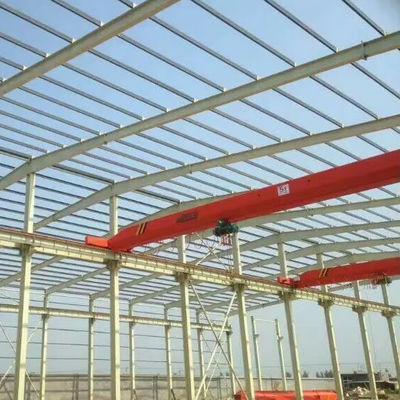

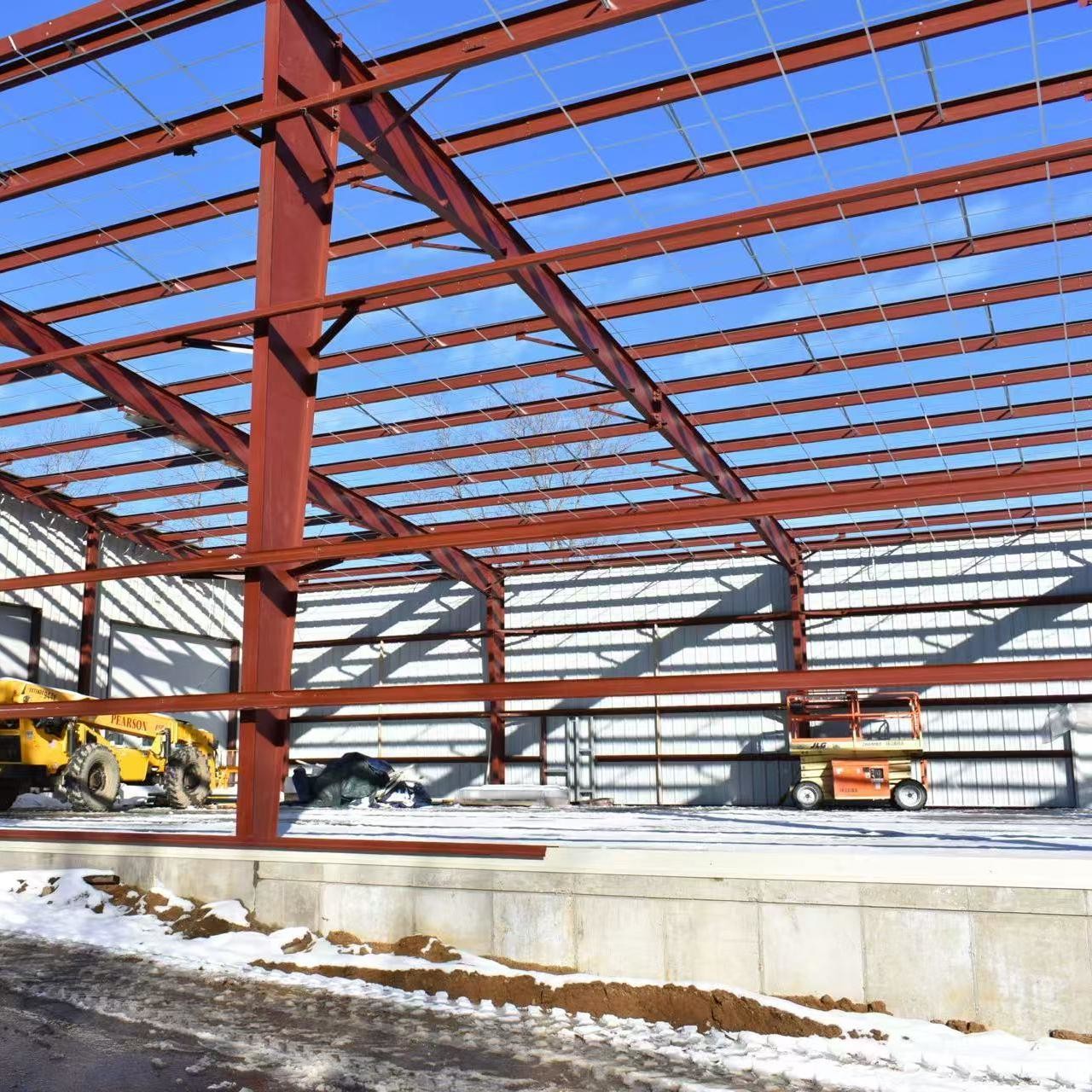

Overall Structure and ComponentsSteel - structure buildings, in contrast to traditional ones, are a novel construction type wholly fabricated from steel. The structure is chiefly composed of steel beams, columns, trusses, and other elements made of section steel and steel plates. Component connections are achieved via welding, bolting, or riveting. Their lightweight and uncomplicated nature leads to wide - spread use in large factories, stadiums, super - high - rise buildings, and more. Common steel - building structure types are portal rigid - frame, frame, truss, and grid structures.Features and Applications of Each TypePortal - frame StructureThe portal - frame structure has a straightforward force - bearing system and a clear force - transmission route, enabling quick construction. It is widely utilized in industrial and civil buildings, including industrial plants, commercial edifices, and cultural and entertainment facilities.Frame StructureFrame structures in steel buildings are flexible and can form a relatively large - scale interior space. They are commonly found in multi - story and high - rise buildings such as commercial offices, shopping malls, and conference centers.Steel - truss StructureThe steel - truss structure uses small - cross - section tubes to form larger - cross - section components. It is frequently employed in industrial and civil buildings with large - span roofs, like bridges, towers, and marine oil - production platforms, especially in structures with large spans or heights.Steel - grid StructureThe steel - grid structure is a high - order statically indeterminate space structure composed of many rods arranged in a specific pattern. It has low spatial stress, a lightweight design, high rigidity, and excellent seismic - resistance capabilities. It can be used in constructing gymnasiums, exhibition halls, petrol stations, and hangars.

Material Description

Main Structure	Including Column & Beam, Made of welded H section Steel, Steel Grade Q355B/Q235B
	Column & Beam Connection: High Strength Bolt
	Column & Foundation Connection: Pre-embedded Anchor Bolt
Secondary Structure	Roof Purlin & Wall Purlin: C-shape or Z-shape Steel
	Knee Brace: Angle Steel
	Brace: Steel Rod
	Tie Bar: Steel Pipe

Types of wall panels and roof panels	Applicable Regions and Scenarios
Color Steel Sheet	Areas without winter, preferred for processing workshops and warehouses
Color Steel Sheet & Fiberglass Roll Insulation	Areas with winter but with low requirements of temperature , preferred for warehouses and workshops
Insulated Sandwich Panel	Workshops and warehouses with temperature requirements
PU Insulated Sandwich Panel	Workshops, warehouses and public facilities with high requirements of temperature for the working environment

Product packaging

FAQ

1. What kind of customer service do you provide?

We offer comprehensive customer service, including basic design,supporting facilities procurement, and the option to dispatch installation guidance.

2. How about the customer reviews of your company?

We are proud to have received consistently high five-star reviews from our customers, which stand as a testament to our commitment to quality and service.

3. What is your quality inspection process like?

Our strict quality inspection process ensures that every product meets the highest standards of excellence. From raw materials to finished goods, each stage is meticulously inspected to guarantee superior quality.

4. Can you send engineers or a whole team to install my project?

We will give detailed installation drawings for free. We can send engineers as an installation director or a team upon request.

5. Do you accept container loading inspection?

You are welcomed to send an inspector, not only for the container loading, but any time during the production time.

6. Do you offer designing service for us?

Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial buildings like office mansions, super markets, auto dealer shops, shipping malls, 5-star hotels.

7. What is the delivery time?

Delivery time depends on order quantities. In general, the delivery time to the nearest seaport in China will be 40 days after receiving the deposit.

8. How can I get a quotation for my projects?

You can contact us by email, phone,  Trade manager and so on 24*7 and you will get a reply within 8 hours.

9. What certifications has your company passed?

Our company has passed professional certifications such as IOS9000, CE, and SGS, ensuring that our products and services meet international standards.
