Place of Origin: | China |
---|---|
Brand Name: | Lanjing |
Certification: | ICR Polska/VC/HS221231 |
Model Number: | LANJING-1 |
Minimum Order Quantity: | 1000sqm |
Price: | 1000-1500 Square Meters $45-50;1500-2000 Square Meters $42-45;2000-3000 Square Meters $40-42; |
Delivery Time: | 30-45 days |
Payment Terms: | TT |
Supply Ability: | 30000T/year |
Installation: | Engineer Guidance On Site | Standards: | AISI, ASTM, BS, DIN, GB, JIS |
---|---|---|---|
Raw Steel Material: | Q235B, Q355B, ASTM A36 | Roof Cladding: | Corrugated Steel Sheet/Sandwich Panel |
Certifications: | ISO 9001, CE | Sail Finishing: | PVDF/PTFE, Pvc Coated |
Crane Capacity: | 5Tons*2 Pcs | Structure Type: | Light Steel Structre |
Highlight: | Rust Proof Steel Structure Building,Lightweight Steel Structure Building,Steel Structure Building Construction |

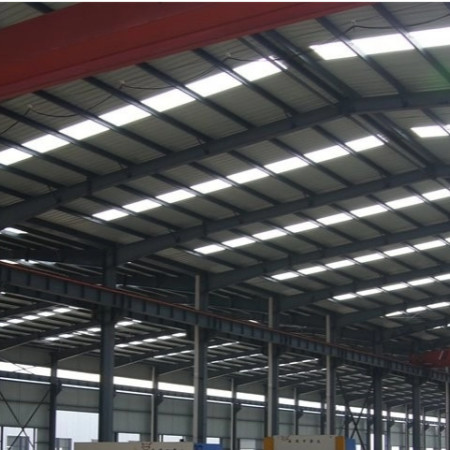

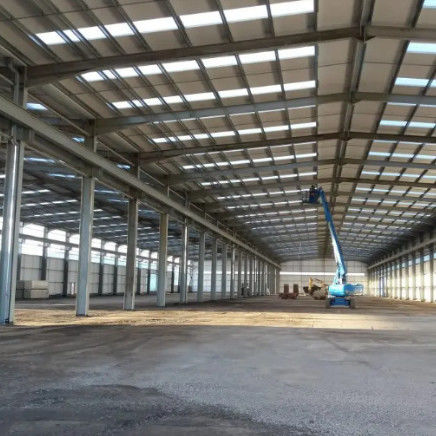

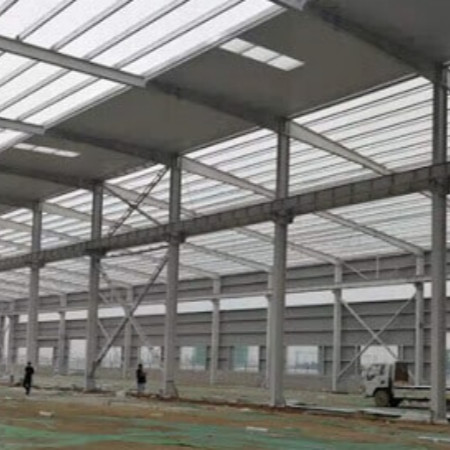

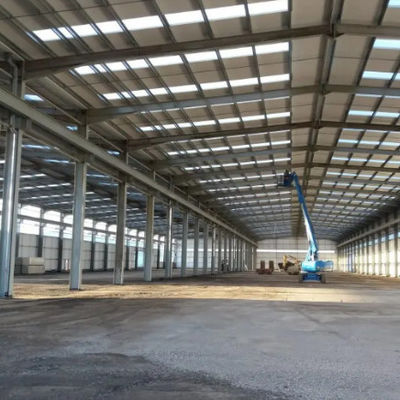

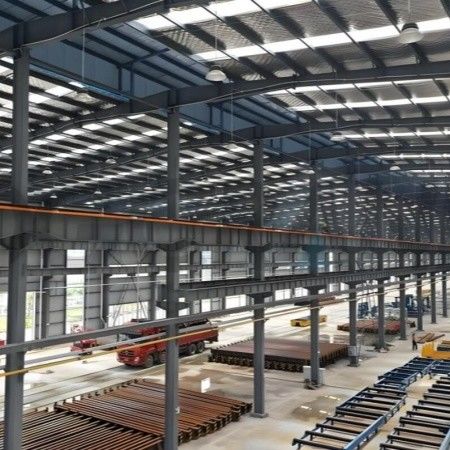

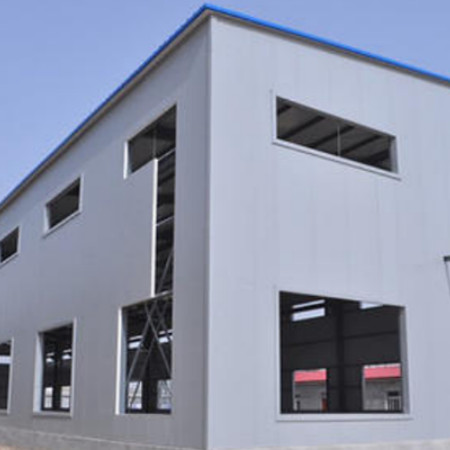

Rust-Proof Steel Structure Building For Marine And Coastal Applications
Steel structure buildings, made entirely of steel components like beams, columns, and trusses, offer significant advantages over traditional construction. They are lightweight, durable, and faster to construct due to prefabrication. Steel structures are also flexible in design, allowing for larger spaces and innovative architecture, and are more sustainable as steel is recyclable.
Types of Steel Structures
1. Portal Frame: Simple and quick to build, used in industrial and commercial buildings like factories and malls.
2. Frame Structure: Flexible for larger spaces, ideal for multi-story offices, malls, and conference centers.
3. Truss Structure: Uses small tubes to create large components, suitable for stadiums, bridges, and towers.
4. Grid Structure: Lightweight and highly rigid, perfect for gyms, exhibition halls, and hangars.
Advantages
- High strength-to-weight ratio.
- Faster construction and lower long-term costs.
- Excellent seismic resistance and sustainability.
Steel structures are widely used in industrial, commercial, and public facilities, offering a modern, efficient alternative to traditional building methods.
Main Structure
|
Including Column & Beam, Made of welded H section Steel, Steel Grade Q355B/Q235B
|
Column & Beam Connection: High Strength Bolt
|
|
Column & Foundation Connection: Pre-embedded Anchor Bolt
|
|
Secondary Structure
|
Roof Purlin & Wall Purlin: C-shape or Z-shape Steel
|
Knee Brace: Angle Steel
|
|
Brace: Steel Rod
|
|
Tie Bar: Steel Pipe
|
Types of wall panels and roof panels
|
Applicable Regions and Scenarios
|
Color Steel Sheet
|
Areas without winter, preferred for processing workshops and warehouses
|
Color Steel Sheet & Fiberglass Roll Insulation
|
Areas with winter but with low requirements of temperature , preferred for warehouses and workshops
|
Insulated Sandwich Panel
|
Workshops and warehouses with temperature requirements
|
PU Insulated Sandwich Panel
|
Workshops, warehouses and public facilities with high requirements of temperature for the working environment
|
